Kaizen Foam Case Inserts - Pelican 1690

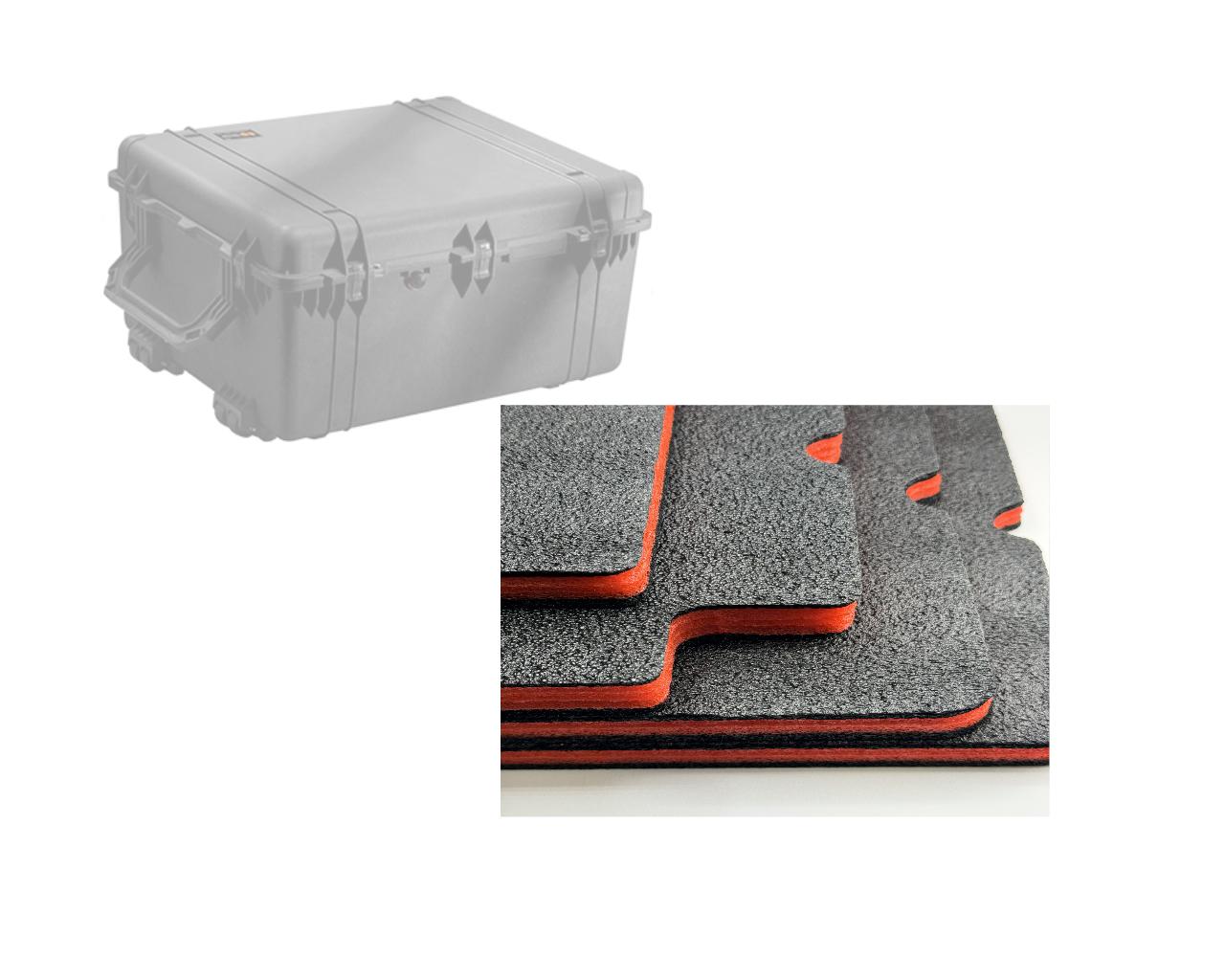

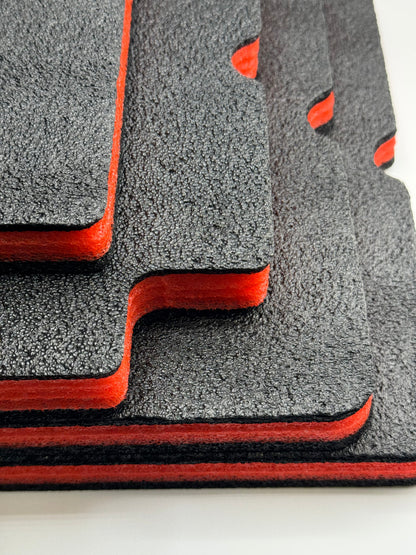

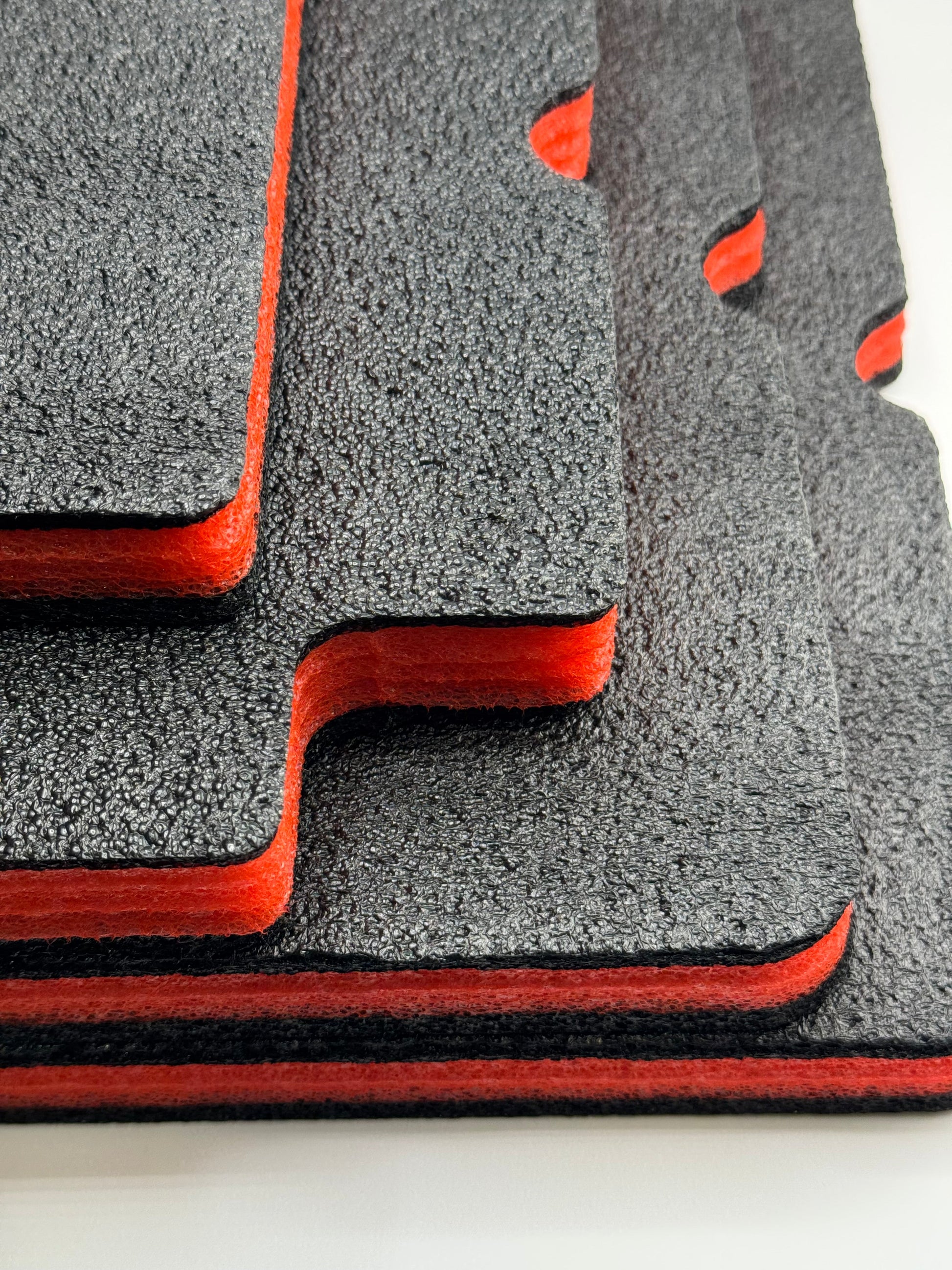

Pelican case inserts pre-cut to fit the Protector series model 1690 having interior dimensions of (L x W x H) 30.13in x 25.13in x 15.36in. Created from 3D models for a precise fit of each layer including the tapered angle of the case walls. The top and bottom faces of this kaizen foam are black with the middle layers in a contrasting red for a professional look and to easily spot missing items.

7 sheets are arranged in the following thicknesses and quantities to come within 6.00mm of flush to the surface of the case:

• 7/8in. qty ( )
• 1-1/8in. qty ( 4 )
• 2-1/4in. qty ( 3 )
• Base layer gap filler qty ( )

Optional Lid Inserts are in the following thicknesses and quantities to come within 4mm of flush to the surface of the lid:.

• 7/8in. qty ( 3 )
• 1-1/8in. qty ( )
• 2-1/4in. qty ( )

Note: negative values indicate the amount above the surface when a combination of layers is not possible to be within 7mm below of flush.
